X-CLX 058 TRUCK CRANE

LIFT MORE. DO MORE. WORRY LESS.

Lift more. Do more. Worry less.

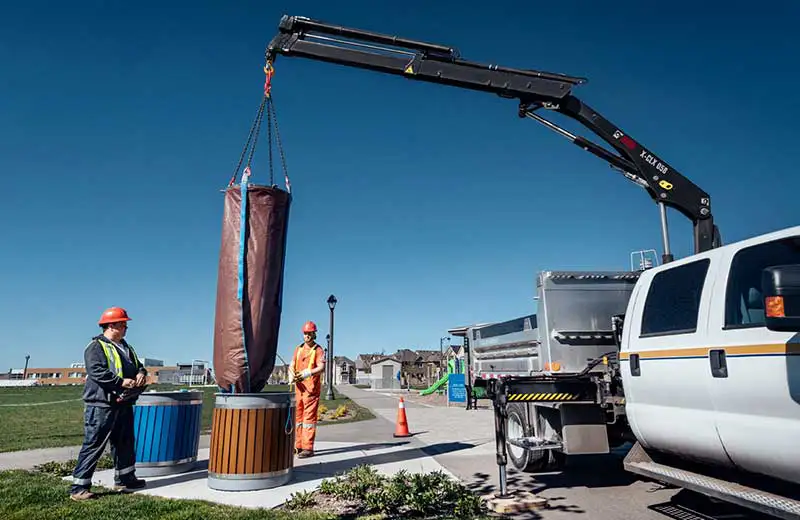

You’ve got enough to worry about just managing your projects and making a profit. So the more your crane can safely and precisely lift and position, the more you can get done in a day. If you can do it all with greater speed and ease of use, and a crane that’s dependable day in and day out, you not only lift more, but you also profit more and worry less. Say hello to the HIAB X-CLX 058 truck crane.

Lift more.

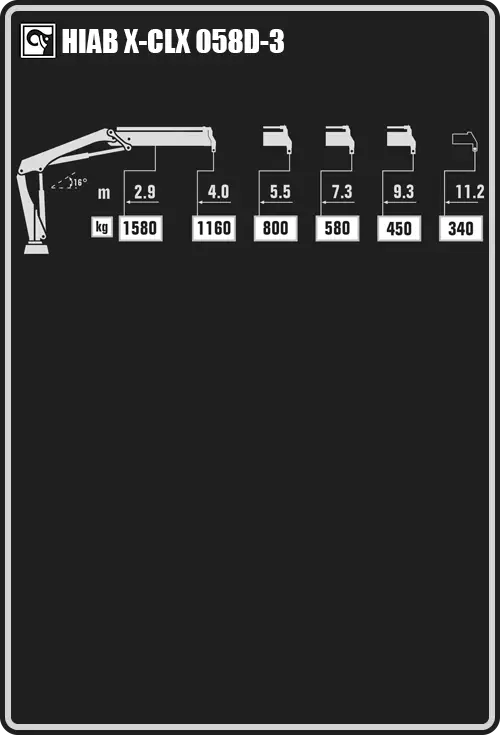

The X-CLX 058 lets you lift more. Its ultra-strong, high-tensile steel construction combines low weight, high capacity and three hydraulic extensions to lift heavy loads in tight spaces. Lift 2,118 kg @ 2.2 m (4,670 lb @7’3”), 821 kg @5.5 m (1,810 lb @ 18’1”), 471 kg @ 9 m (29’6” ft). A compact base design reduces the crane's weight, enabling it to handle larger payloads. And a three-point bridge mount maximizes stability and minimizes stress on the crane and truck frame.

Do more.

The X-CLX 058 boosts performance. Its manual CLX cross-control system is intuitive—simply the best, most highly regarded manual system there is. The ‘X’ in ‘CLX’ refers to identical mirrored controls on both sides of the truck, so you can operate faster and from the safest position. Its D-link Boom system is strong and versatile, bending to work in, over and under obstacles, increasing performance, lift capacity (the inner boom) and maneuverability (the outer boom). Rack-and-pinion steering and a separate high-performance control valve help you do more—quickly, safely, smoothly, precisely and efficiently. A low-maintenance rack-and-pinion slewing system with flange-mounted cylinders safely handles a full load up a five-degree slope.

Do even more with available options

X- CLX 058D-3 simplifies operation and can do even more with available options. Add a 3,000 lb capacity Rotzler TI-1 compact winch and 3/8” wire rope, mounted under the outer boom. Get an anti-two-block system with a cable reel-to-boom tip switch, or a power pack custom-matched to your crane.

And worry Less

The X-CLX 058D-3 gives your productivity and your mind a lift. It’s durable, reliable and maximizes your investment today, tomorrow, and beyond. A separate, externally mounted valve improves durability and makes your X-CLX 058 easier to service. Its patented nDurance® coating and high-tensile steel design stand up under even the toughest conditions. Greaseless slide pads are maintenance-free and, together with hidden, protected hoses, reduce downtime and worry. When you’re ready for service, its easy-access design reduces costs and gets you back on the road and back to work quickly. Like all HIAB truck-mounted cranes, the X-CLX 058 has the highest resale value in the industry and sets the bar as the Canadian Industry Standard (CIS). It also has the longest crane life in the industry. And it’s supported by Atlas Polar’s unparalleled national sales and service network – #1 in Canada.
