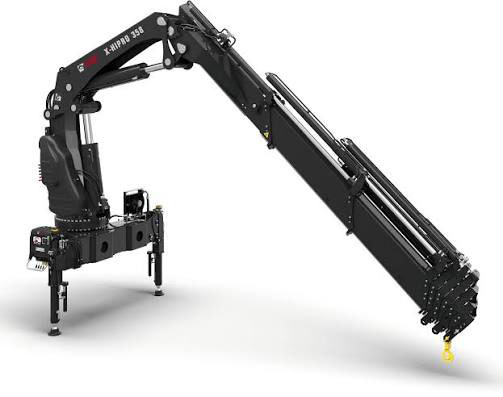

X-HiPRO 358 TRUCK CRANE

NON-STOP USE AND 360-DEGREE SLEWING

Non-stop productivity with 360˚ continuous slewing

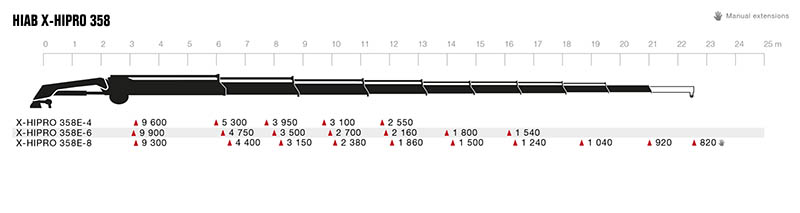

If there's anything you'd want in a long-boom articulating crane, you'll find it in the HIAB X-HiPRO 358. It's purpose-built for precision and controlled strength where you need it. The key reason behind that is 360-degree continuous slewing – a full range of motion that gives you total freedom and productivity. No moving your truck, making unnecessary stops or backtracking. You may find yourself getting the job done ahead of time. The X-HiPRO 358 has faster load cycles, and operators can choose the best path from A to B to put loads within easy reach for faster, safer, easier lifting. Lifts 15,430 lb (3,400 lb. at full 53.5 ft reach) with the E-6 model or 14,330 lb. to a vertical reach of 78-80 ft (2,030 lb. at full 69 ft outreach). A relay box, LED work lights on the boom, and 23-ft outrigger legs help keep operators safely on the job. And a 200-litre aluminum tank improves payload capacity and keeps oil cooler, extending the life of your HIAB.

Precise control everywhere with HiPRO

The HiPRO remote control system is the most advanced there is, and both big crane models come with powerful built-in HIAB HiPRO technologies that make every delivery more precise, faster and safer. XSDrive wireless remote control lets you work more safely and efficiently from the ground with an external display and easy control of 24 proportional functions and seven easy-to-use on/off functions—many simultaneously. Vertical Load Stability System (LSSV™) recognizes sudden movements and automatically compensates for boom bounce to protect the operator, equipment, load and surroundings. Semi-Automatic Folding (SAF) gets the job done faster, more safely, and with less effort. A single lever monitors boom angles to stow and unfold the X-HiPRO 358. It works hand in hand with its Boom Deployment Assistant [BDA] feature, preventing the operator from making any movement that might damage the crane. And the X-HiPRO 358’s highly advanced hydraulic V200 valve with Pump Flow Distribution improves fuel efficiency, handles high oil flow and avoids pressure drops for fast, smooth, consistent performance

HIAB options and accessories for added value

Amp up your productivity even more with available HIAB options and accessories. Make more room for equipment and ground clearance with gas spring-assisted 180-degree easy-tilt outrigger legs. Fifth- and sixth-function hose and pipe kits keep lines out of harm’s way, reduce wear and tear, minimize downtime and make it easier to add attachments. A large multicoupling connects all fifth- and sixth-function hoses simply and cleanly in one easy operation. A 12.5-tonne roller-bearing hook or a high-performance two-tonne Rotzler compact winch can be a great addition, too. It comes complete with 10 mm rotation-resistant wire rope, a load hook, a grooved drum, and a pressure roller for improved rope wind-up. It’s fully integrated with the X-HiPRO 358’s SPACE control system, providing overload, overwind and anti-two-block protection. Optimize lifting capacity with a factory-installed Variable Stability Limit (VSL) safety system—ideal when you can’t fully extend the stabilizer legs. Accessorize with a genuine HIAB rotator, universal fork, hydraulic hook, or brick grab.

Durability, reliability, long life and value

HIABs are renowned for their reliability, durability and long-term value. So is the HIAB X-HiPRO 358 articulating crane. Its high-tensile steel construction is lighter and stronger and delivers more payload and profits. Patented nDurance™ nanotechnology coating resists rust and defies the elements, and hidden hoses and greaseless slide pads reduce wear, tear and maintenance. It keeps your articulating crane looking good for a lifetime and helps HIABS maintain the highest resale value in the industry. The X-HiPRO 358 is easy to mount, maintain and own thanks to knowledgeable, experienced sales and service expertise and advice from Atlas Polar's national truck-mounted sales and service network.
