X-CLX 128 TRUCK CRANE

‘X’TRA EASY DURABILITY AND PERFORMANCE

‘X’-tra easy performance

HIAB operators demand outstanding performance, durability and ease of use. Many want a mid-weight crane that can lift like a heavyweight. HIAB's next-generation X-series truck-mounted cranes, like the X-CLX 128, are engineered to respond.

The 'X' in the name clearly indicates a simplified, versatile design that adds value in every area. It's lighter, smarter, and more productive, easily accesses tight spaces, and is easier to operate and own. Weighing as little as 1290 kg, it can reach up to 12.2 metres—a well-balanced mix of performance and durability that easily handles almost any day-to-day lifting and loading job.

Made to perform

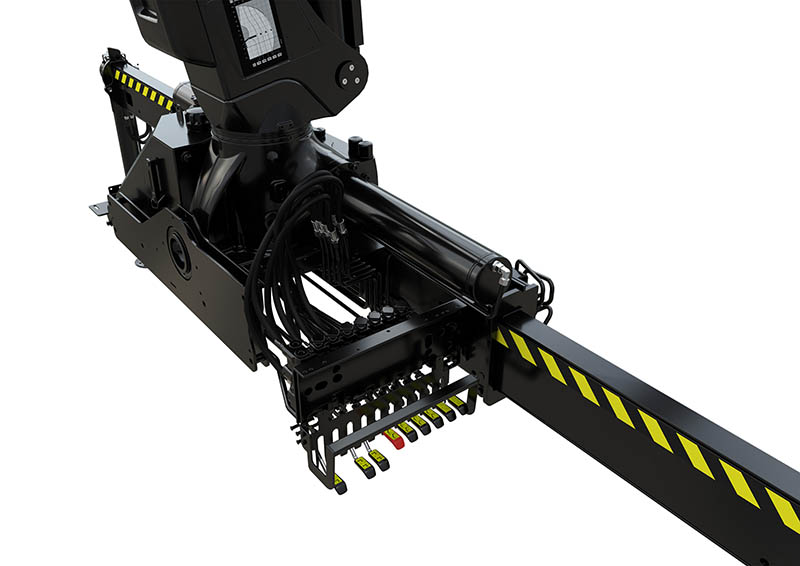

The X-CLX 128 articulating crane features a powerful link-free B-Link boom system – ideal for lift-and-load and double-fast, with optimized hydraulics for fuel savings. The crane responds rapidly to lever movements, so you’re done faster and earn more. The crane is available in two models, the X-CLXB-3 and the X-CLXB-3 with XSLite remote control. The X-CLXB-3 has manually operated 15-foot outriggers, a separate aluminum oil tank, and a manually operated CLX cross-control system, with identical lever sequences on both sides of the truck for easy, intuitive operation. The X-CLX 128B-3 with HIAB XSLite converts operation to a four-function remote control and comes with 15-foot hydraulic outriggers with a factory-fitted oil tank on the base. Both models deliver smooth, safe, efficient, and performance.

Made to last

The X-CLX 128 truck crane is built for the long haul. Innovative design and construction make the X-CLX 128 easy to mount, access and maintain. Its unique angle, boom, and CLX control system make it easy to work fast, efficiently, and safely. Optimized hydraulics reduce wear and tear and improve fuel efficiency. Light, tough tensile steel leaves more weight room for payload and stands up to punishment. With HIAB's patented high-tech nDurance™ coating, hidden hoses, and greaseless slide pads, the HIAB X-CLX 128 resists rust, defies the elements, and keeps maintenance to a minimum for years of productivity and the highest resale value in the industry. Add an optional rotator, an earth drill, or a cost-effective pallet fork, and it's an investment that delivers everything you need to work simply and profitably.

HIAB cranes set the bar as the Canadian Industry Standard (CIS) and have the highest resale value in the industry. And Atlas Polar's unparalleled national service network is always here when you need us.
