T-CLX 038 TRUCK CRANE

HARD-WORKING UTILITY VEHICLES NEVER HAD IT SO EASY

Smaller vehicles have never had it so easy

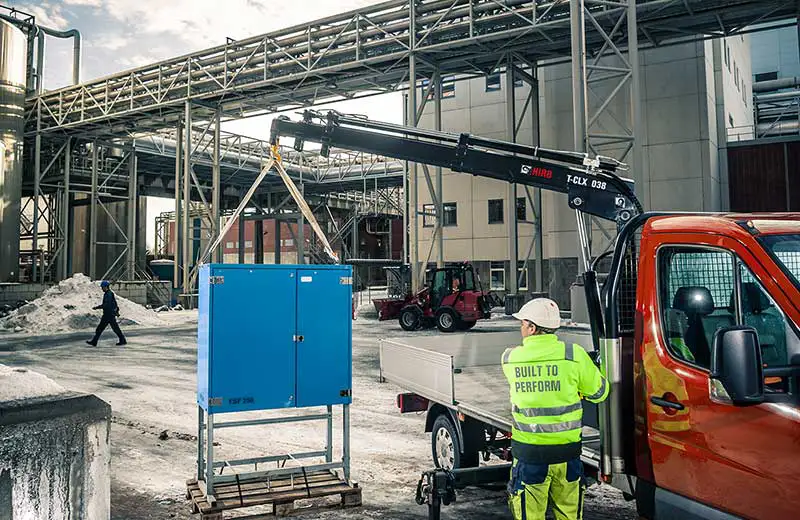

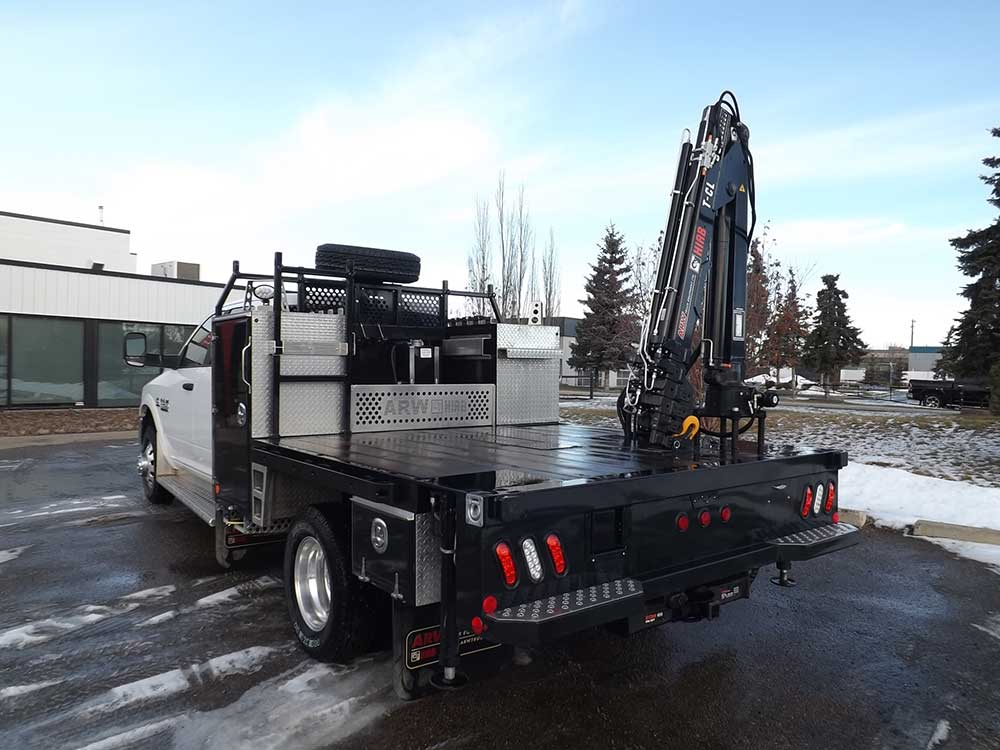

The HIAB T-CLX 038 stiff-boom truck-mounted crane is designed for light utility vehicles that handle everyday heavy lifting. It’s optimized for small-to-medium trucks, with powerful in-close lifting, a lower profile, and folds tightly to fit on small pickup trucks. This model and other T-cranes are perfect for urban deliveries and municipal services with limited access. Loads such as large gardening, landscaping, and tree-care equipment, medium-sized machinery, and construction and building materials are nothing for this lightweight crane. And it’s value-added in every way—easy to install, easy to operate, loads of options and easy to own and care for thanks to Atlas Polar’s unparalleled national sales and service network.

Easy heavy lifting for everyday jobs

Like other HIAB T-cranes, the T-CLX 038 models feature a unique, compact folding structure optimized for small- and medium-sized trucks, leaving ample room for payload. In close, the T-CLX 038 is extra-powerful, lifting 2,200 kg at 1.6 m (T-CLX 038-3) and 2,040 kg at 1.7 m (T-CLX 038-4). Capacity ranges from 700 kg at maximum reaches of 4.8 metres / 530 kg at 6 metres. Five-function valves provide critical safety features, like load-holding and pressure relief. They also allow operators to control multiple hydraulic functions like lifting, swinging and outrigger operation at the same time, with a single unit. It all makes for fast, one-person operation.

Always CLX control. Choose manual or radio remote control operation.

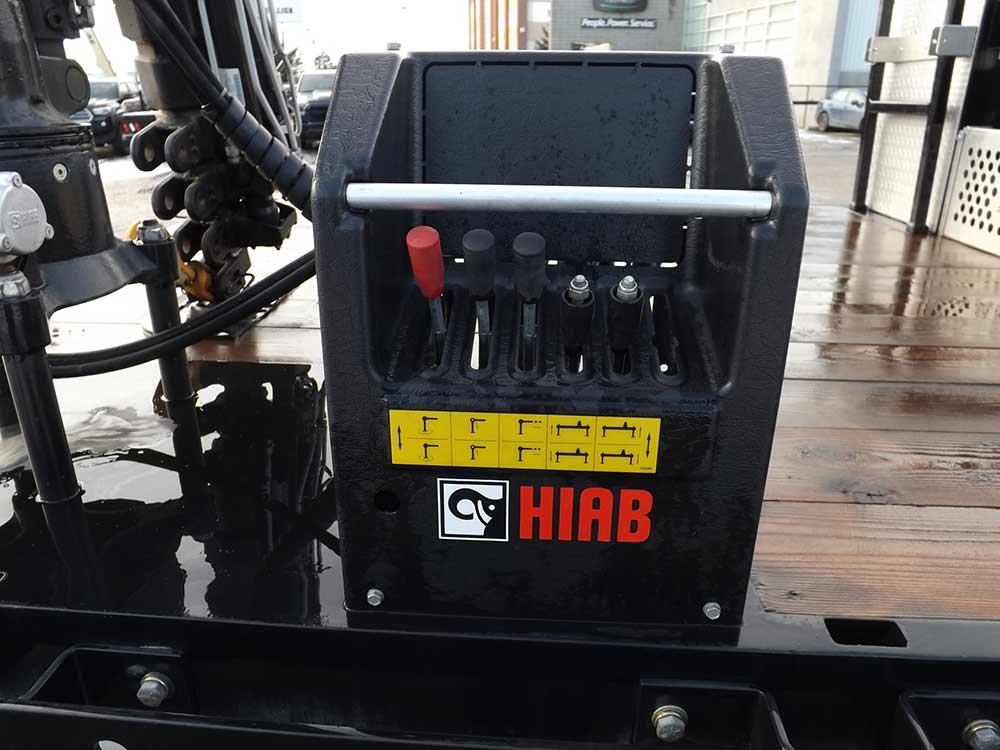

T-CLX 038 cranes are operator-friendly, smooth and precise, robust and reliable, thanks to their unique HIAB CLX control system. Controls are mirrored on both sides of the crane, so the operator can stand in the best position to view the load and operate from either side. The T-CLX-038-3 and -4 models are also available with optional HIAB XSLite radio remote control, for increased safety, efficiency and comfort. Four levers operate crane functions, and a menu selection allows for two optional outriggers. The factory-ordered XSLite option also includes a PSB Box with an emergency stop button, two batteries, a charger and a 12V converter.

Durable and built to last

T-CLX 038 installs quickly and easily. It’s tough, durable and great value too. A moisture-repellent cast base and patented high-tech nDurance™ anti-corrosion finish help ensure your crane lasts and also holds its value all the way to resale—the highest in the industry. Little wonder HIAB cranes set the bar as the Canadian Industry Standard (CIS).

Loads of options to suit your business

HIAB is always thinking about the operator, and the HIAB T-CLX 038 does that. All models offer unique options to help speed up work, increase safety, make deliveries easier, and make your business more profitable.

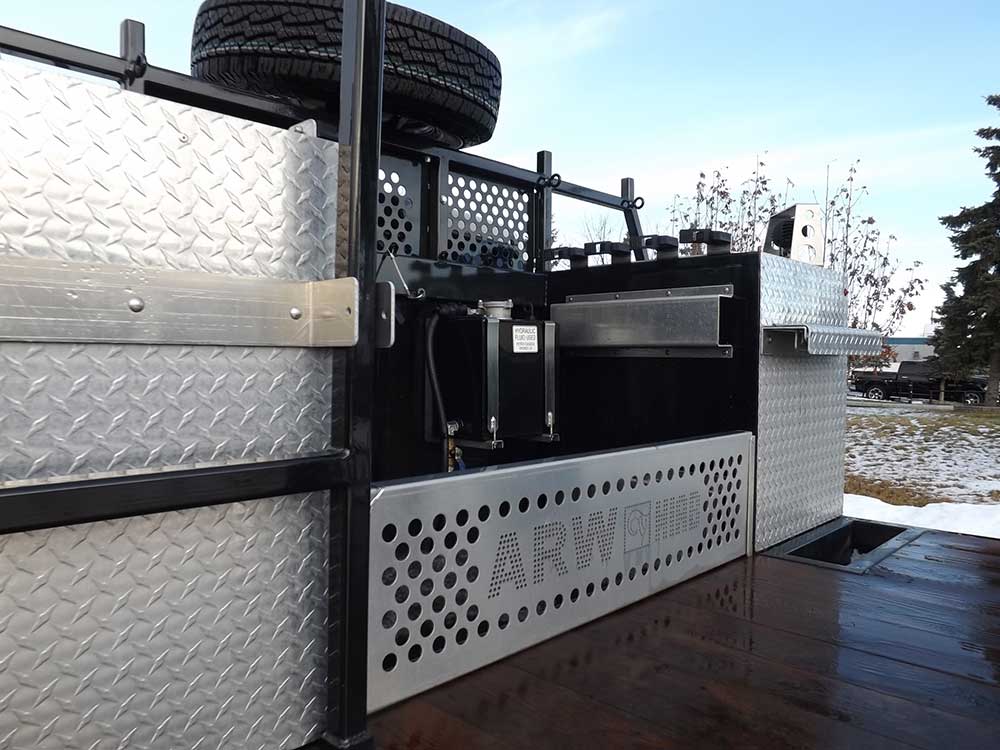

Add a 12V heavy-duty power pack. It has an enclosed pump, an 8.5-litre tank, a level indicator, and a filler cap for horizontal mounting. Or an 18-litre oil tank with a return filter, oil level indicator, and filler cap with a strainer. Choose your outrigger legs: manual (25-47”), or long or short hydraulic legs. Add a weld-on leg-tilt device for 90-degree ground clearance, or a variety of winches, matched to your crane capacity and mounted under the outer boom.

No matter which T-CLX 038 model or options you choose, you likely never had it so easy. And Atlas Polar is always on hand to help, in Ontario and across the country through our authorized sales and service network.
