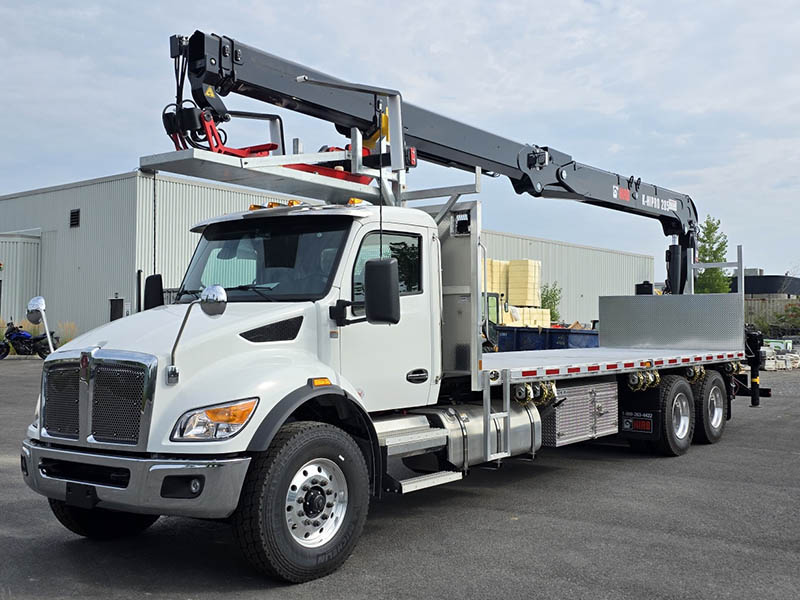

K-HiPRO 285 TRUCK CRANE

THE FASTEST 4-STOREY DRYWALL CRANE

The fastest 4-storey drywall crane

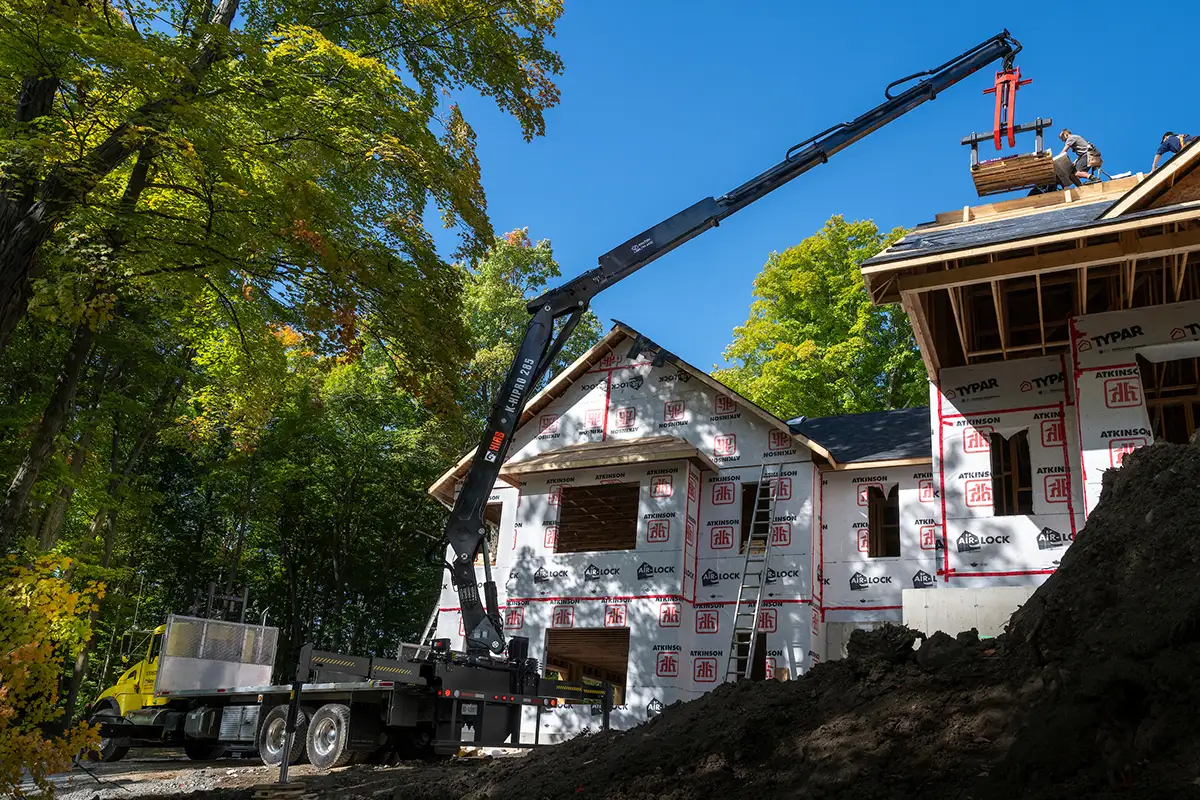

The HIAB K-HiPRO 285 truck crane is a five-star, four-storey drywall dream. It’s purpose-built for drywall and construction, with an optimized low-weight-to-maximum capacity ratio, a long reach, and the best load-handling for its crane type. The durable K-HiPRO 285 accelerates delivery, maximizes payload, and boosts profit. The K-HiPRO 285 model safely and accurately lifts 3,130 lb at 51’6” (6380 lb to 26’7”) / 4,230 lb at 43’4” (7,280 lb at 26’7), and delivers your load with maximum manoeuverability. K-HiPRO 285 cranes can rotate 450 degrees (a full circle plus a quarter turn) for hard-to-reach positioning. A hydraulic tilting wallboard fork and rotator make that easier than ever.

Do it all: fast, safely, accurately and easily

HIAB K-HiPRO 285's advanced HiPRO remote control system is the industry leader. Its unique features make it the best for managing difficult drywall loads in the safest and most efficient way possible. The XS-Drive fingertip radio remote control lets operators work more safely and efficiently from the ground, with an optimal field of vision. It features an internal display, and also allows control of 24 proportional functions and seven easy-to-use on/off functions—many simultaneously. The K-HiPRO 285’s Vertical Load Stability System (LSSV™) recognizes sudden movements and automatically compensates for boom bounce to protect the operator, equipment, load and surroundings. They’re both part of the K-HiPRO 285’s SPACE system, which also includes Automatic Speed Control (ASC™) and Automatic Duty Control (ADC), automatically adjusting crane capacity for seamless lifts. An optional four-function control valve is available for auxiliary outriggers.

HIAB Crane Tip Control (CTC) for even greater precision

HIAB Crane Tip Control (CTC) is an available option for operators whose jobs require pinpoint precision. It calculates the perfect boom movements so even less experienced operators can deliver loads precisely where they’re needed—through doors or windows, over balconies, around obstacles, or in narrow spaces—with only three levers.

More reasons to buy a HIAB K-HiPRO 285 drywall crane

Value-added features are a given anytime you buy a HIAB. The K-HiPRO 285 truck-mounted crane is constructed of super-strong, lightweight high-tensile steel to maximize payload for fewer deliveries. HIABs are low-maintenance, easier to service, more durable, and have reduced emissions. It’s coated in a multi-process nDurance paint protection, parts are accessible, pipes are long-lasting, corrosion-resistant zistaplex, and DIN 24 soft-seal couplings are leak-free. A high-pressure piston pump with a 12V converter, and an aluminum oil tank to help reduce service and make your HIAB crane last even longer.

HIAB truck-mounted cranes set the bar as the Canadian Industry Standard, have the highest resale value in the industry and are backed by Atlas Polar’s skilled, knowledgeable national sales and service network.
