Hydrorake Hydrorake Trash Rake – Double Boom DT9300

Hydrorake
  • Increase Flow Efficiency and Reduce Operations Costs by running the Hydrorake automatically 24 hours a day, 7 days a week.
  • Improve Safety and Staff Morale using Hydrorake over manual raking methods.
  • Maximize Installation Flexibility with effective trash raking on intakes of any width and on racks with any bar spacing.
  • Purchase with Confidence as Hydrorake is the number #1 trash cleaning system for intake screens in North America.
tnsize=small

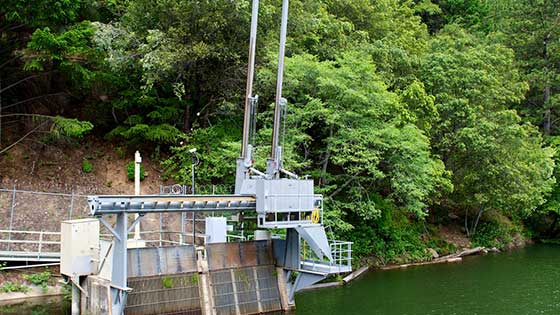

The Atlas Polar trash model DT9300 double boom raking system cleans any gauge screen or bar rack. Installation upstream provides space for trash removal and deck access for personnel. The fully automatic system replaces handraking, which is still the most common method of rack maintenance. The Hydrorake imitates this action automatically 24 hours a day even in the coldest weather. The PLC control system comes complete with HMI screen. Permits tailoring the operational sequencing to any flow or debris conditions at each intake. Multiple units can be used on the Hydrorake rail system for intakes with large masses of debris such as the USBR fish screen protection barrier in central Washington state. How the Atlas Polar DT9300 Hydrorake System works:

  • A telescopic boom with rake head extends into the water by means of a hydraulic/ mechanical boom system.
  • Hydraulic cylinders tilts the twim booms to hold the rake against the racks at a constant pressure while a second set of cylinders lifts the boom.
  • When the rake reaches the top of the racks it automatically dumps the debris.
  • The optional heavy duty conveyor system then moves the debris to a collection area on either side of the intake.

Technical Specifications

  • Lift capacity 4,000 lbs. debris
  • Raking depth 70 ft. below deck elevation and triple
  • Rake boom design double telescopic (triple staging available)
  • PLC Control Auto control panel complete with HMI screen with alternate Radio controller.
  • Power supply 240/480/575V, 3 phase, 60 hz
  • Parts Standard production items, hi-interchangeability
  • Hydraulic system 2,500 psi
  • Inward rake pressure Rake exerts an adjustable 300 - 500 Psi pressure on trashracks during upward raking motion
  • Rakehead standard 6' width (custom widths available).

Download Hydrorake Trash Rake – Double Boom DT9300 Brochures
